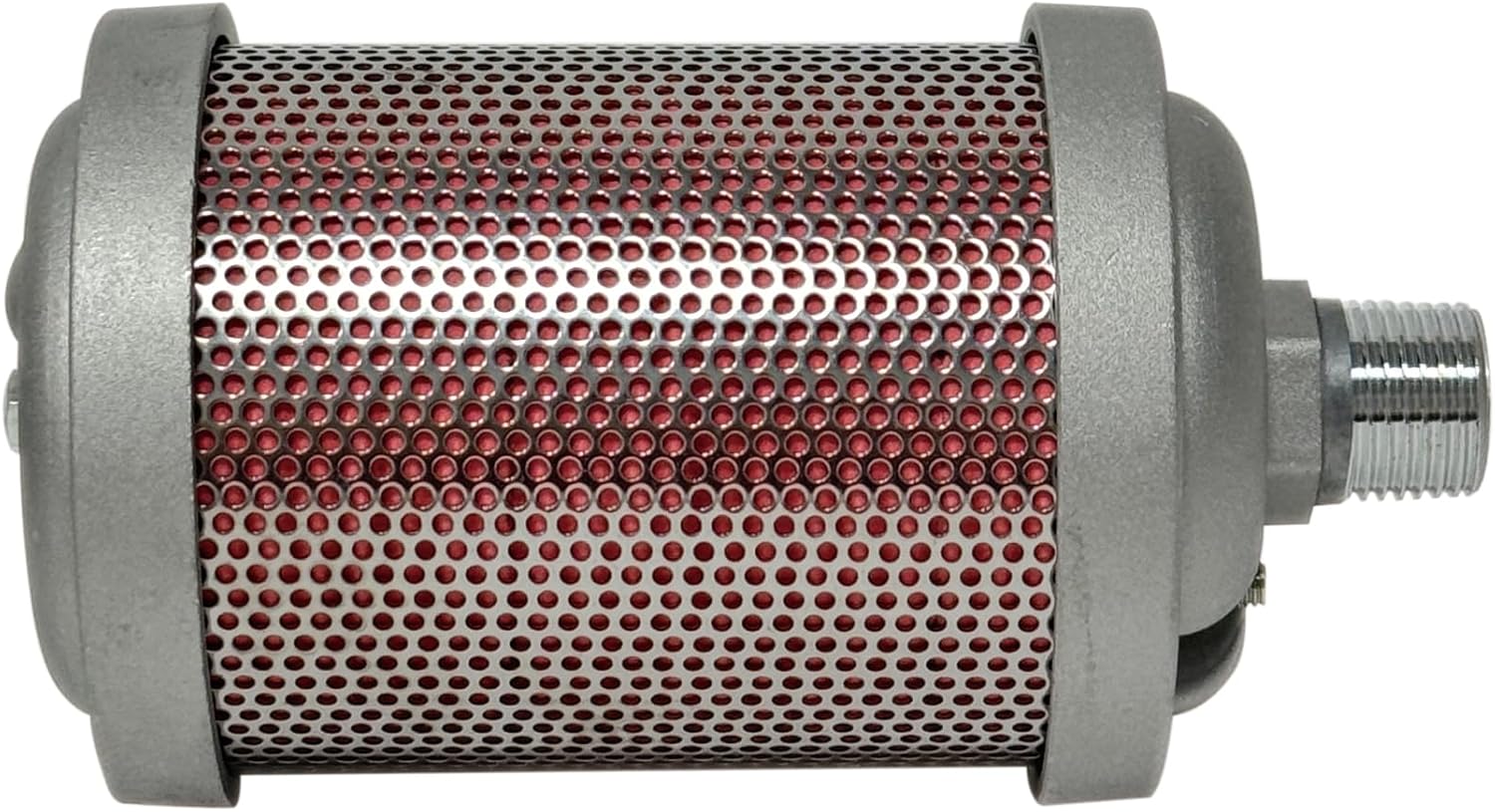

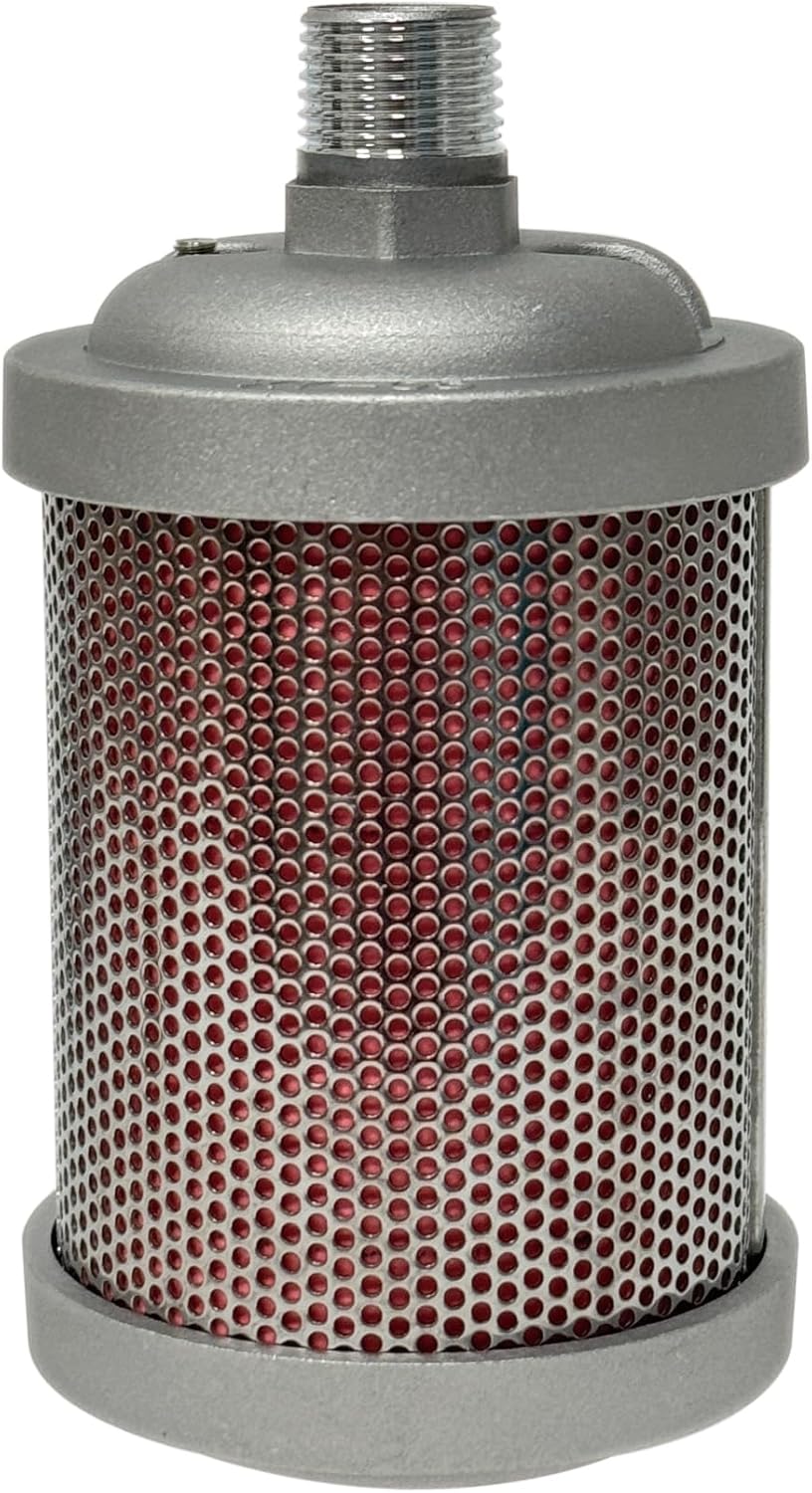

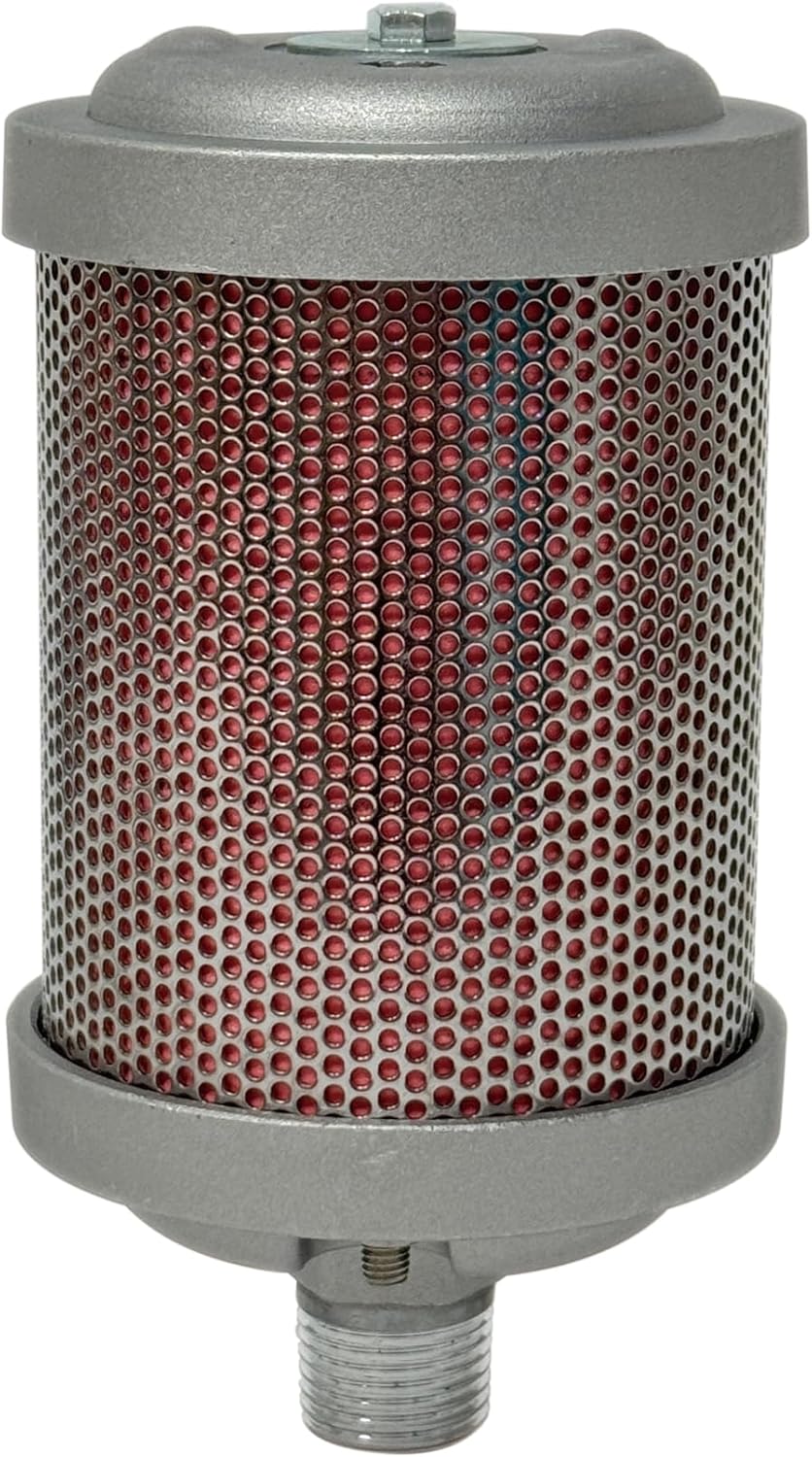

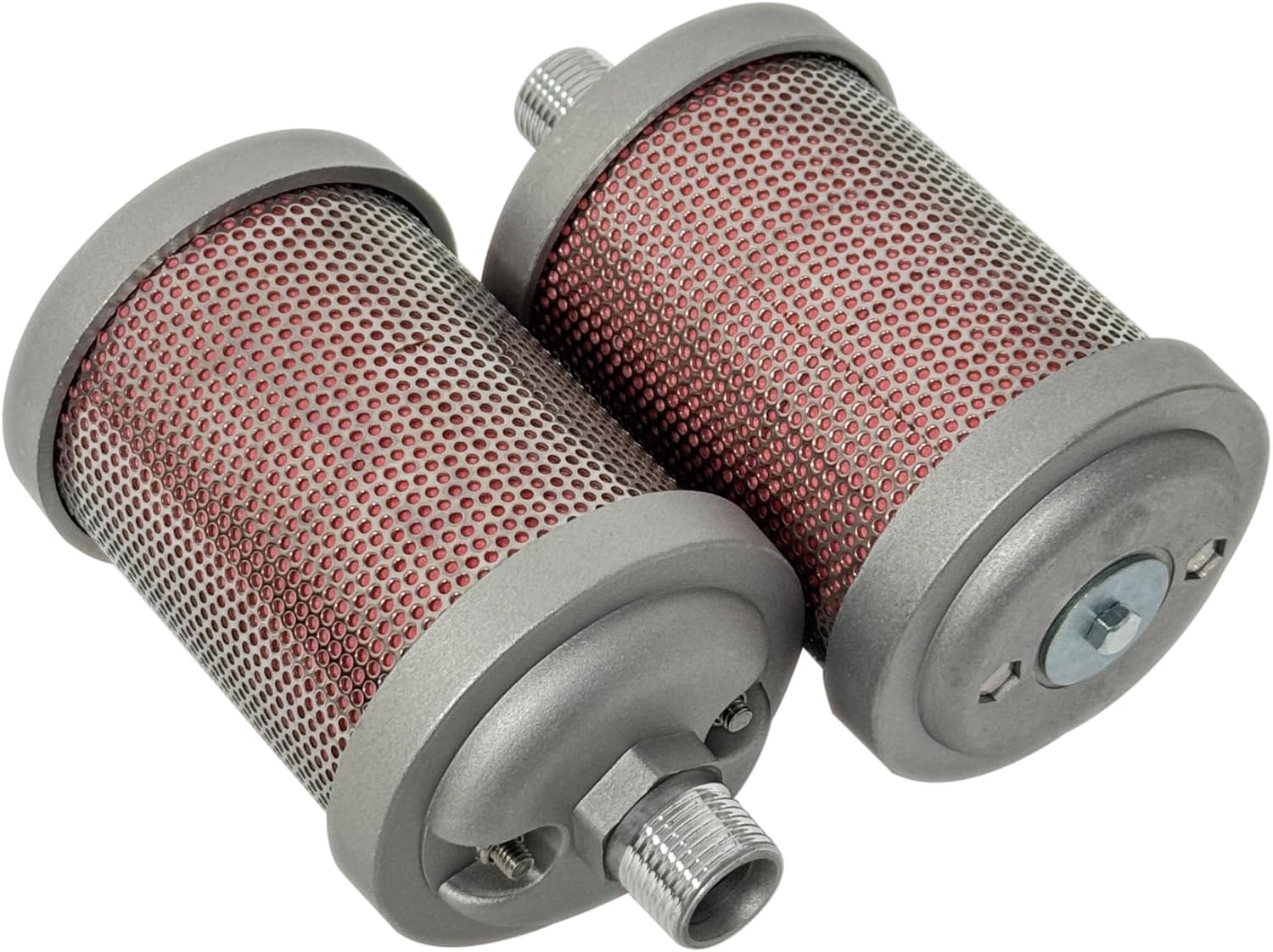

XY05 Air Compressor Muffle，Dryer Silencer 1/2" NPT，for Drying Machine Diaphragm Pump Exhaust Noise Reduction，XY-05 M05，Single Chamber 145 PSI，Muffler Replacement Part X05
XY05 Air Compressor Muffle，Dryer Silencer 1/2" NPT，for Drying Machine Diaphragm Pump Exhaust Noise Reduction，XY-05 M05，Single Chamber 145 PSI，Muffler Replacement Part X05
Product Description
Apply Model: XY05 XY-05 X05 M05
Application: Air compressors, drying machines, diaphragm pumps
Function: Exhaust noise reduction
Material: made from durable materials like aluminum or stainless steel for longevity and resistance to high temperatures and pressure
Ensure compatibility with the thread size before installation
Regular maintenance and replacement may be required depending on usage and environmental conditions
Couldn't load pickup availability
30 in stock
View full details
DN - FILTER DESCRIPTION
Professional Air Compressor Filter Service Provider
The air compressor filters relates to brand: Atlas Copco, Ingersoll Rand, Sullair, LIUTECH, Kobelco, Hitachi, CompAir, Bolaite, Jufeng, Kaishan, Fehe, Schneider, Quincy, Boge, Screw, GardnerDenver, Mitsui, Ganey, Kaeser, Rotoromp, Linghein, Tanabe, United OSD, Sucessengine, Inspur, Mtair, Campo, Ningbo Xinda, Eccoair, Desran, Guli. ABAC and so on
The "Three Filters" of a compressor typically include: the Air Intake Filter, Oil Filter, and Air/Oil Separator.
Core Filter Types & Functions
Air Intake Filter: The first line of defense; it traps dust and particles (above 0.3μm) to prevent internal wear on the compressor head.
Oil Filter: Removes metal shavings, carbon deposits, and debris from the lubricant to protect bearings and rotors.
Air/Oil Separator: Separates suspended oil mist from the compressed air before discharge, recycling the oil back into the system to minimize oil carryover.
Inline Post-Treatment Filters
Depending on the air quality requirements, additional inline filters may be installed:
Particulate Filters: Remove rust and pipe scale.
Coalescing Filters: Merge fine liquid droplets (water/oil) into larger drops for removal, filtering down to 0.01 ppm.
Activated Carbon Filters: Remove odors and organic vapors, essential for food and pharmaceutical industries.
Maintenance Cycle
To avoid energy loss due to pressure drops, common replacement intervals are:
Air & Oil Filters: Every 2,500 hours (shorter in dusty environments).
Oil Separator: Generally every 2,800 to 3,500 hours depending on oil quality.
